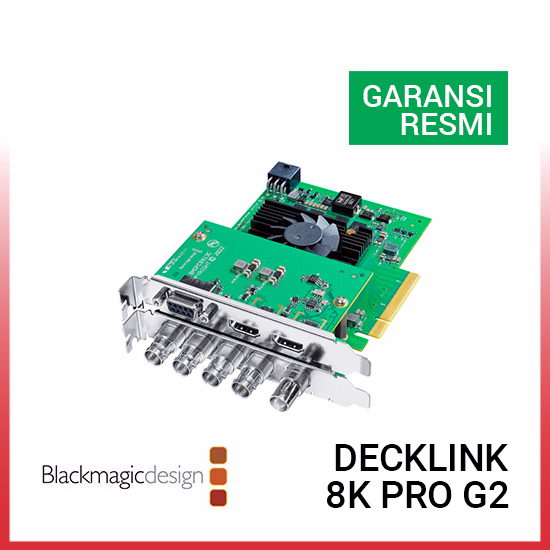

Blackmagic DeckLink 8K Pro G2
Blackmagic DeckLink 8K Pro G2 - Image 2
Blackmagic DeckLink 8K Pro G2 - Image 3
Blackmagic DeckLink 8K Pro G2 - Image 4

Blackmagic DeckLink 8K Pro G2

Rp17,720,000.00

Out of stock

Guaranteed safe checkout



Butuh Bantuan?  081217178890 | 081216422333
SKU: DeckLink 8K Pro G2 Categories: , , Product ID: 128175

Description

Description

Blackmagic DeckLink 8K Pro G2

Blackmagic DeckLink 8K Pro G2 adalah PCIe capture dan playback yang mendukung 8K, dilengkapi dengan empat bidirectional 12G-SDI, satu HDMI 2.1 input, dan satu HDMI 2.1 output. Kartu serbaguna ini mendukung semua standar SD, HD, UHD, 4K, dan 8K, menjadikannya solusi PCIe capture dan playback 8K yang ideal untuk produksi film layar lebar. Dengan memanfaatkan DeckLink SDK gratis, kamu bisa mengatur hingga empat video stream dalam arah, format, atau frame rate apa pun hingga DCI 4K 60 fps, memungkinkan capture dan playback multi-channel yang sebenarnya.

DeckLink 8K Pro G2 mendukung 8- dan 10-bit YUV 4:2:2 serta 10- dan 12-bit RGB 4:4:4 dengan cakupan penuh Rec. 2020 color. Kartu ini memungkinkan penggunaan hingga 120 fps pada HD dan 4K, serta hingga 60 fps pada 8K. Empat koneksi 12G-SDI juga mendukung hingga 64 channel embedded audio. Perangkat ini kompatibel dengan slot PCI Express 8- dan 16-lane pada macOS, Windows, dan Linux, dan membutuhkan 2 slot PCI plus sambungan ke power supply komputer. DeckLink 8K Pro G2 sangat cocok untuk generasi berikutnya dari workflow beresolusi tinggi, frame rate tinggi, dan high dynamic range.

Kompatibilitas dengan Berbagai Aplikasi Software

Termasuk: DaVinci Resolve, Fusion, Final Cut Pro, Adobe Premiere Pro, Avid Media Composer, Adobe After Effects, Avid Pro Tools, Steinberg Cubase, Autodesk Flame, Adobe Photoshop, Steinberg Nuendo, Open Broadcaster Software Studio, vMix, The Foundry Nuke, Grass Valley Edius X, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Resolume Arena, Vegas Creative Software Vegas Pro & Vegas Edit, Corel VideoStudio Pro, CyberLink PowerDirector, VidblasterX Studio & Broadcast, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Nautilus Studio NEMO3D, Derivative TouchDesigner, Assimilate Scratch & Live Assist, Burst Video WebClip2Go & [REC]Marker, NewBlue Title Live & Titler Pro, SGO Mistika, dan Zoom.

Catatan: ini adalah aplikasi pihak ketiga, dan tingkat dukungan bisa berbeda-beda. Periksa dengan vendor software kamu untuk memastikan kompatibilitas.

Isi Paket

  • Blackmagic Design DeckLink 8K Pro G2 Capture Card

  • HDMI 2.1 Mezzanine Card

  • Power Cable

  • Set Spacer & Screws

  • Welcome Wallet dengan QR Code untuk download software

  • Garansi terbatas 3 tahun dari pabrikan

Spesifikasi

Spesifikasi:

Inputs/Outputs
Video I/O
Input/Output 4x BNC (12G-SDI) Female Input 1x HDMI 2.1 Female Output 1x HDMI 2.1 Female
Other I/O
Input 1x BNC (Blackburst) Input 1x DE-9/DB-9 (RS-422)
Format Support
Video Resolution
BNC Input/Output (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 8192 x 4320 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 7680 x 4320 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps 3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/96/100/119.88/120 fps 2048 x 1080PsF at 50/59.94/60 fps 2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/96/100/119.88/120 fps 1920 x 1080PsF at 50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/96/100/119.88/120 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps 720 x 480i at 59.94 fps 720 x 576i at 50 fps HDMI Input/Output (8/10/12-Bit 4:4:4/4:2:2/4:2:0) 8192 x 4320 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 7680 x 4320 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/95/96/100/119/120 fps 3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/95/96/100/119/120 fps 1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/95/96/100/119/120 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720 at 50/59.94/60 fps 720 x 480i at 59.94 fps 720 x 576i at 50 fps
Audio Format
Unspecified Digital Signal Input/Output: 48 kHz / 24-Bit
Embedded Audio
SDI Input: 64-Channel SDI Output: 64-Channel HDMI Input: 32-Channel HDMI Output: 32-Channel
Standards
Video Standard Compliance
SMPTE: 259M/274M/292M/296M/372M/424M/425M/425M-A/425M-B/2048-1/ST 2081-10/ST 2082-11/ST 2082-12
HDR Support
Yes: Hybrid Log Gamma
Broadcast System Compatibility
NTSC, PAL
Hardware
OS Compatibility
macOS 13.0 or Later Windows 10 or Later (64-Bit Only) Linux
Power
Power Consumption
30 W
General
Operating Conditions
41 to 122°F / 5 to 50°C up to 90% Humidity
Storage Conditions
-4 to 140°F / -20 to 60°C up to 90% Humidity
Dimensions
6.41" / 16.28 cm
Weight
10.4 oz / 295 g
Packaging Info
Package Weight
1.005 lb
Box Dimensions (LxWxH)
10.4 x 5.3 x 1.2"

Isi Dalam Box

isi dalam box:

  • Blackmagic Design DeckLink 8K Pro G2
  • HDMI 2.1 Mezzanine Card
  • Power Cable
  • Set of Spacers & Screws

Delivery Info

  • Jatim : 1-3 Hari
  • Jateng & Yogyakarta : 1-4 Hari
  • Jabar : 1-4 hari
  • Jabodetabek : 2-4 Hari
  • Bali : 2-4 Hari
  • Nusa Tenggara : 2-6 hari
  • Sumatera ; 2-6 Hari
  • Kalimantan : 2-6 Hari
  • Sulawesi : 2-7 Hari
  • Maluku & Papua : 2-7 Hari
  • NB: Lama pengiriman akan bertambah 7-10 hari kerja, jika unit terdapat baterai
