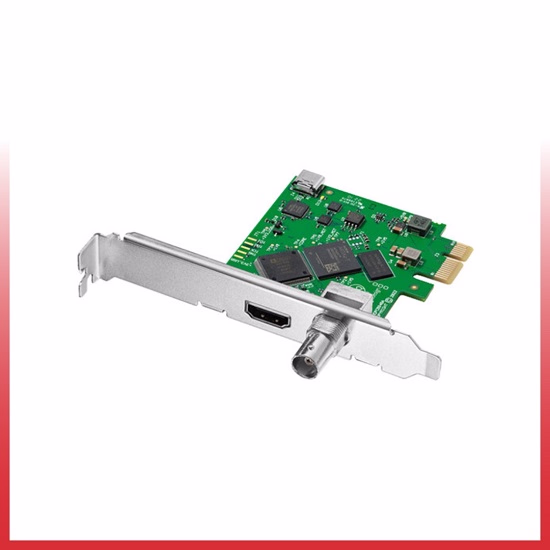

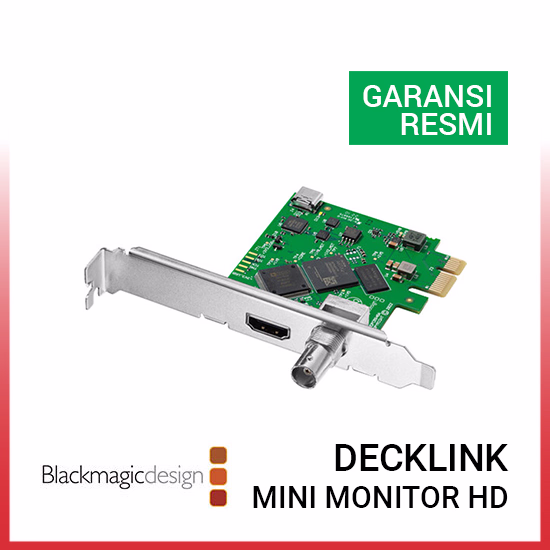

Blackmagic DeckLink Mini Monitor HD

(Length Unspecified)

1x BNC (3G-SDI) (Monitor) 1x HDMI (2.0) (Monitor)

No

SDI (8/10/12-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30 fps 1080PsF at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines 59.94 fps SDI (8/10-Bit 4:2:2 YUV) DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2KPsF at 23.98/24/25/29.97/30 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (10/12-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (8-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps HDMI (12-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps

SDI: 16-Channel HDMI: 8-Channel

SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1

macOS 11.1 macOS 12.0 or Later Windows 10 Windows 11 Linux

Device: 3 W

37 to 72°F / 5 to 40°C

-4 to 113°F / -20 to 45°C

0 to 90% ()

0 to 90% (Non-Condensing)

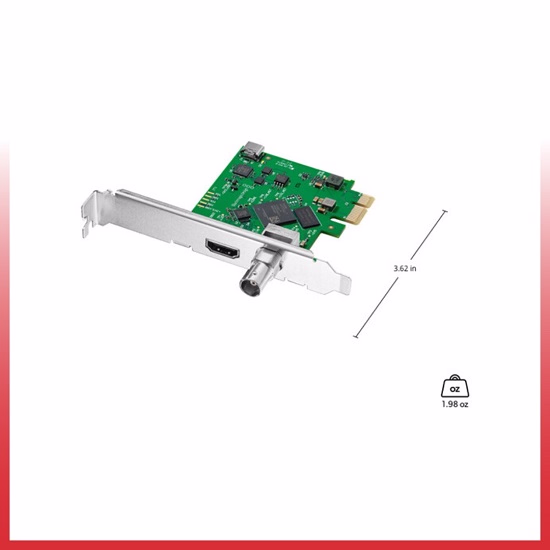

3.62" / 91.95 mm

1.98 oz / 56 g

0.295 lb

5.3 x 5.2 x 1.2"
