Blackmagic DeckLink Quad 2

Rp 23.660.000

  • 8 x Bidirectional SD/HD/3G-SDI
  • 8-Lane PCIe Interface
  • Resolutions up to 1080p60
  • DIN (Mini-BNC) Connectors
  • Inputs/Outputs Independently Switchable
  • Supports Uncompressed RGB 4:4:4 Signals
  • Supports 16 Channels of Embedded Audio
  • Reference In, Up/Down/Cross Conversions
  • Media Express Application Included
  • macOS, Windows, and Linux Compatible

Hubungi CS

Out of stock

Silahkan Klik jika ingin membeli via marketplace

Subsidi Ongkir untuk pembelian Minimal 500rb

  • Jaminan asuransi untuk kehilangan
  • Pengiriman 2×24 Jam
  • Order sebelum 14:00 WIB (Senin-Sabtu)
    untuk pengiriman hari yang sama.
Guaranteed Safe Checkout

Blackmagic DeckLink Quad 2

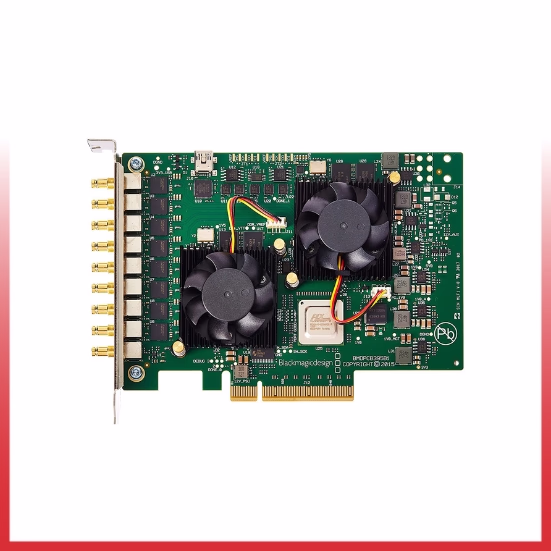

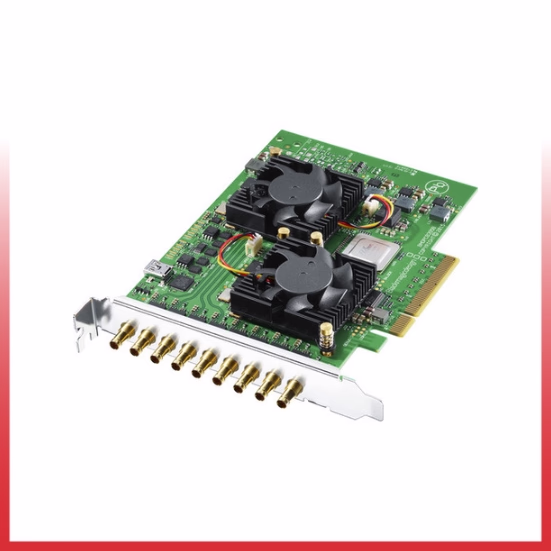

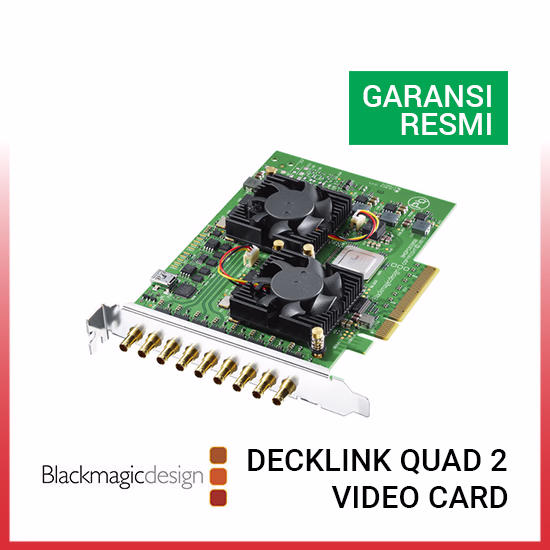

Blackmagic DeckLink Quad 2 adalah kartu PCIe dengan 8 jalur yang dilengkapi delapan konektor SD/HD/3G-SDI DIN (Mini-BNC) bidirectional 12-bit. Setiap konektor dapat dikonfigurasi secara independen untuk menangani kombinasi hingga delapan channel capture atau playback dengan resolusi maksimal 1080p60. Kartu ini mendukung format video terkompresi seperti ProRes dan DNxHD, serta video uncompressed 10-bit 4:2:2 dan 4:4:4. Hal ini menjadikannya ideal digunakan baik untuk live broadcast maupun post-production. Quad 2 kompatibel dengan komputer Mac, Windows, dan Linux, serta didukung oleh berbagai aplikasi software populer. Untuk aplikasi yang tidak memiliki fitur capture video, tersedia software Blackmagic Media Express yang memungkinkan kamu untuk capture, mengatur, dan mengelola media dengan mudah.

Compatibility

Kompatibel dengan komputer Mac, Windows, dan Linux, serta didukung berbagai aplikasi software populer. Untuk aplikasi yang tidak mendukung capture video, sudah termasuk software Blackmagic Media Express agar kamu bisa melakukan capture, mengatur, dan mengelola media.

Independent Input/Output

Setiap input dan output SDI dapat menggunakan standar video yang berbeda karena semuanya bekerja secara independen.

Video Support

  • Mendukung sinyal uncompressed 10-bit 4:2:2 dan 4:4:4.

  • Cross conversion antara 720p dan 1080p saat capture video.

  • SD upconversion ke 720p atau 1080p saat capture video.

Audio Support

Mendukung hingga 16 channel embedded audio untuk setiap input/output.

Included Software

Mac OS & Windows:

  • Media Express

  • Disk Speed Test

  • LiveKey

  • Blackmagic Desktop Video Utility

  • Blackmagic driver

Linux:

  • Media Express

  • Blackmagic Desktop Video Utility

  • Blackmagic driver

Supported Codecs

  • AVC-Intra, AVCHD

  • Canon XF MPEG2

  • Digital SLR

  • DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX

  • HDV, XDCAM EX, XDCAM HD, XDCAM HD422

  • DNxHR & DNxHD

  • Apple ProRes 4444, 422 HQ, 422, LT, 422 Proxy

  • Uncompressed: 8-bit 4:2:2, 10-bit 4:2:2, 10-bit 4:4:4

Software Applications

  • Adobe Premiere Pro CC

  • Adobe After Effects CC

  • Adobe Photoshop CC

  • Apple Final Cut Pro X

  • Avid Media Composer

  • Avid Pro Tools

  • DaVinci Resolve

  • Fusion

  • Steinberg Cubase

  • Steinberg Nuendo

Other Supported Applications

  • Adobe Flash Media Live Encoder

  • Autodesk Flame

  • Boinx Software MimoLive

  • Burst Video WebClip2Go

  • CasparCG Server

  • Cinegy Capture Pro

  • Class X Liveboard & Coral CG

  • Corel VideoStudio Pro

  • CyberLink PowerDirector

  • DevTek Easy Media Suite

  • Glookast Capturer

  • Grass Valley Edius

  • Imagine Communications Velocity & InfoCaster

  • Livestream Producer

  • Magicsoft CG

  • Magix Vegas Pro & Movie Edit Pro Premium

  • Metus Ingest

  • Nautilus NEMO3D

  • Open Broadcaster Software Studio (OBS)

  • Renewed Vision ProPresenter

  • Resolume Arena

  • Softron MovieRecorder & MReplay

  • Sony Catalyst Production Suite

  • Telestream Wirecast

  • Tools On Air Just: Play & Live & In

  • Uniplay One & CG

  • Ventuz Director

  • Vidblaster X, Studio & Broadcast

  • vMix Live

  • Xsplit Broadcaster

  • Zoom

Additional information

Weight 1 kg

Reviews

There are no reviews yet

Add a review
You must be logged in to post a review Log In

Spesifikasi;






















System Connection
PCIe 2.0 x8
Inputs/Outputs
8x DIN (Mini-BNC) (3G-SDI) Male
Other I/O
1x DIN (Mini-BNC) Blackburst, Reference, Tri-Level Sync Input
Simultaneous Multi-Input Support
Yes: 8 Simultaneous Inputs



Format Support




















Input Video Format
SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
480i / 525 lines at 60 fps
576i / 625 lines at 50 fps
Input Audio Format
Analog: 48 kHz / 24-Bit
Output Video Format
SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV)
1080p at 23.98/24/25/29.97/30/50/59.94 fps
1080PsF at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
480i / 525 lines at 60 fps
576i / 625 lines at 50 fps
Embedded Audio
SDI: 16-Channel



Standards












Video Standard Compliance
SMPTE 259M/292M/296M/372M/425M
ITU -R BT.601/BT.656
HDR Support
Not Specified by Manufacturer



Hardware








OS Compatibility
Windows 8.1.10 or Later
macOS 10.14.15 or Later
Linux



Power








Power Consumption
22 W



Environmental
















Operating Temperature
37 to 72°F / 5 to 40°C
Storage Temperature
-4 to 113°F / -20 to 45°C
Operating Humidity
0 to 90%



General
















Certifications
C-Tick, CE, FCC
Dimensions
6.3" / 16 cm
Weight
4.59 oz / 130 g



Packaging Info












Package Weight
0.56 lb
Box Dimensions (LxWxH)
7 x 5.55 x 1.05"

isi dalam box:



  • 1x Blackmagic DeckLink Quad 2
