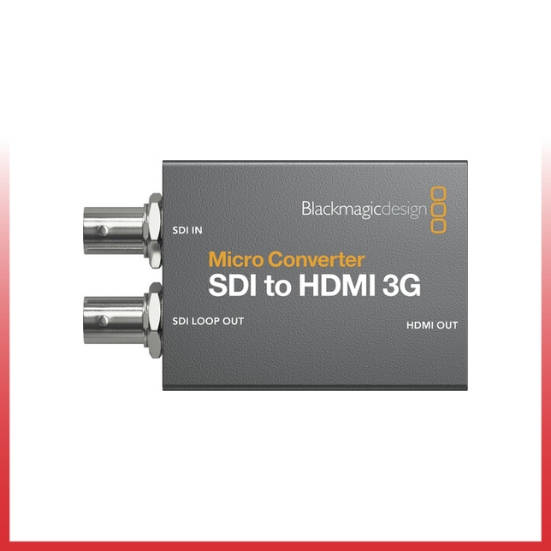

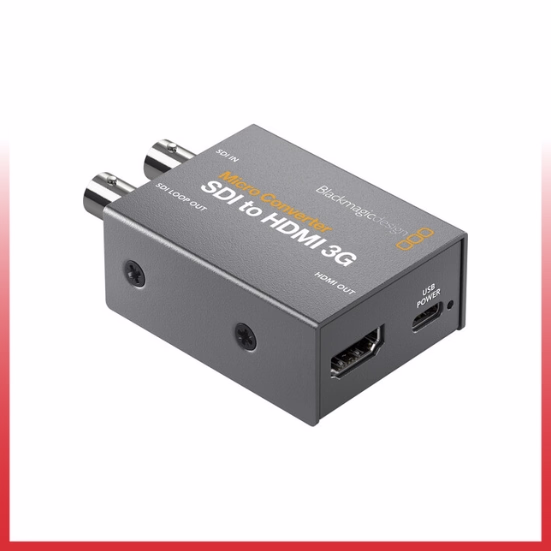

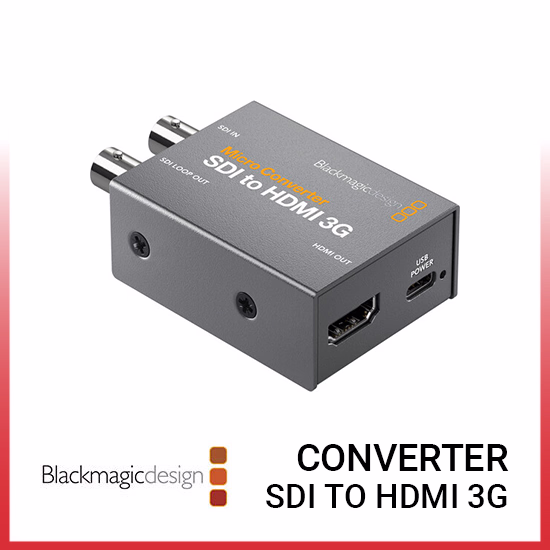

Blackmagic Design Micro Converter SDI to HDMI 3G

Rp 1.310.000

  • 1x SD/HD/3G-SDI Input & 1 x Loop Output
  • 1 x HDMI Type A Output
  • DCI 2K SDI In/Out | 1080p60 HDMI Out
  • 3D LUT for Calibrating or Loop Output
  • SDI A/B Selection | USB Power
  • Embedded Audio
  • Compact, Rugged Design
  • LED Video & Power Signal Indicators

Out of stock

Silahkan Klik jika ingin membeli via marketplace

Subsidi Ongkir untuk pembelian Minimal 500rb

  • Jaminan asuransi untuk kehilangan
  • Pengiriman 2×24 Jam
  • Order sebelum 14:00 WIB (Senin-Sabtu)
    untuk pengiriman hari yang sama.
Guaranteed Safe Checkout

Blackmagic Design Converter SDI to HDMI 3G

Blackmagic Design Converter SDI to HDMI 3G

Additional information

Weight 1 kg

Reviews

There are no reviews yet

Add a review
You must be logged in to post a review Log In

Spesifikasi:


























Video I/O
Input
1x BNC (3G-SDI)
Output
1x BNC (3G-SDI) (Loop Output)
1x HDMI 2.0
Video Resolution
BNC Input (8/10-Bit 4:2:2 RGB, YUV)
2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
2048 x 1080PsF at 25/29.97/30 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
768 x 576i at 50 fps
720 x 480i at 59.94 fps
SDI Output
2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
2048 x 1080PsF at 25/29.97/30 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
768 x 576i at 25 fps
720 x 480i at 29.97 fps
HDMI Output (4:2:2 YUV)
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
768 x 576i at 25 fps
720 x 480i at 29.97 fps
Broadcast System Compatibility
NTSC, PAL
Wireless
No
OS Compatibility
macOS 10.14.15 or Later
Windows 10



Inputs/Outputs
















Video I/O
Input
1x BNC (3G-SDI)
Output
1x BNC (3G-SDI) (Loop Output)
1x HDMI 2.0
Other I/O
Input/Output
1x USB-C
Expansion Slots
No



Format Support
















Video Resolution
BNC Input (8/10-Bit 4:2:2 RGB, YUV)
2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
2048 x 1080PsF at 25/29.97/30 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
768 x 576i at 50 fps
720 x 480i at 59.94 fps
SDI Output
2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
2048 x 1080PsF at 25/29.97/30 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
768 x 576i at 25 fps
720 x 480i at 29.97 fps
HDMI Output (4:2:2 YUV)
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
768 x 576i at 25 fps
720 x 480i at 29.97 fps
Embedded Audio
HDMI/SDI
Reclocking
No



Standards
















Video Standard Compliance
SMPTE: 259M/292M/296M/424M/425M-A/425M-B
HDCP Support
Yes: Version 2.2
Broadcast System Compatibility
NTSC, PAL



Hardware












Wireless
No
OS Compatibility
macOS 10.14.15 or Later
Windows 10



Power












Power I/O
1x USB-C (4.4 to 5.2 VDC ) Input
Power Consumption
2.5 W



General




















Operating Conditions
32 to 104°F / 0 to 40°C at 0 to 90% Humidity
Storage Conditions
-4 to 140°F / -20 to 60°C
Dimensions
3.01 x 1.8 x 0.98" / 76.45 x 45.7 x 24.89 mm
Weight
5.29 oz / 150 g



Packaging Info












Package Weight
0.345 lb
Box Dimensions (LxWxH)
3 x 1.9 x 1.1"

Isi dalam box:



  • Converter SDI to HDMI 3G
