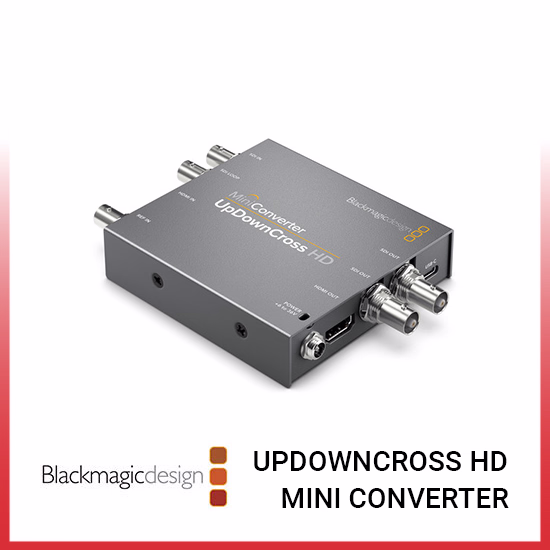

Blackmagic Design Mini Converter UpDownCross HD

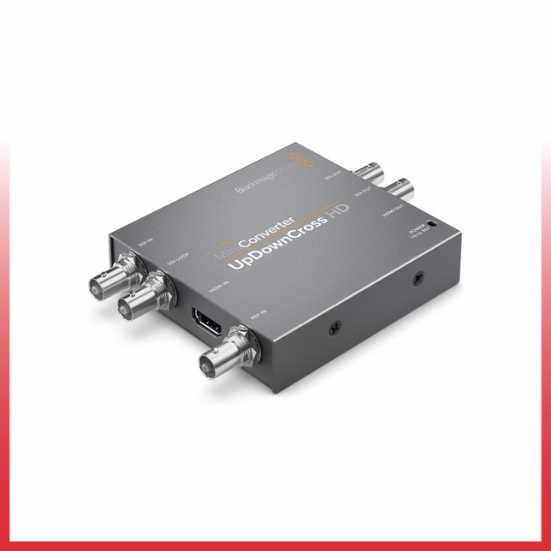

Blackmagic Design Mini Converter UpDownCross HD - Image 2

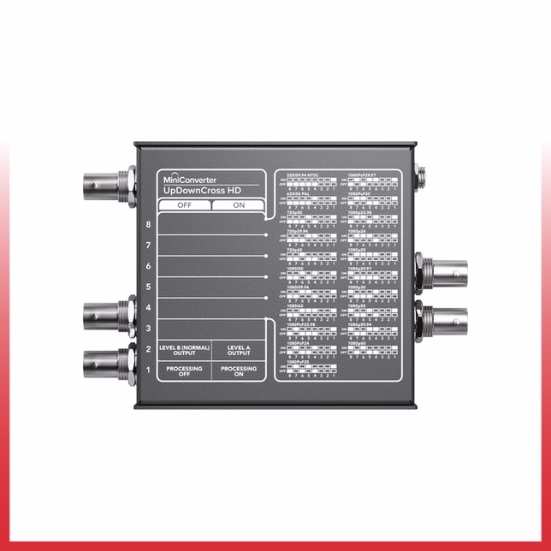

Blackmagic Design Mini Converter UpDownCross HD - Image 3

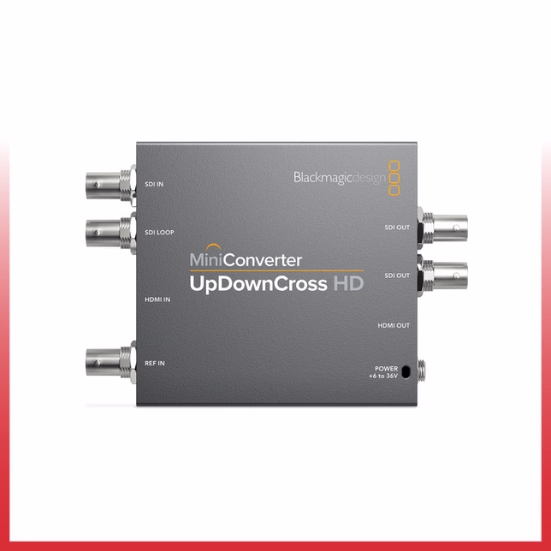

Blackmagic Design Mini Converter UpDownCross HD - Image 4

Blackmagic Design Mini Converter UpDownCross HD

Rp3,790,000.00

  • 3G/HD/SD-SDI Up/Down/Cross Conversion
  • 1 x 3G/HD/SD-SDI Input
  • 2 x 3G/HD/SD-SDI Outputs & 1 x Loopout
  • 1 x HDMI Input & 1 x HDMI Output
  • Support Signals up to 1080p60
  • Automatic Input Signal Detection
  • Automatic, Multirate Support
  • Reference Input & Reclocking
  • Control via DIP Switches or Software
  • 12V Universal Power Supply Included

Hubungi CS

Guaranteed safe checkout



Chat CS  081217178890 | 081216422333
SKU: Blackmagic Design Mini Converter UpDownCross HD Categories: , Brand: Product ID: 128463

Description

Description

Blackmagic Design Mini Converter UpDownCross HD

Blackmagic Design Mini Converter UpDownCross HD

Spesifikasi

Spesifikasi:

Connections
Video Inputs
3G/HD/SD-SDI: 1 x BNC HDMI: 1 x Type A
Video Output
3G/HD/SD-SDI: 2 x BNC Loop-Through Out: 1 x BNC HDMI: 1 x type A
Reference Input
Black Burst & Tri-Level Sync: 1 x BNC
Reclocking
Yes
SDI Compliance
SMPTE 424M-B/296M/292M/259M ITU-R BT.656/BT.601
SDI Video Sampling
4:2:2
SDI Color Space
YUV
SDI Audio Sampling
48 kHz, 24-bit
Supported Video Standards
SDI: 1080p 60/59.94/50/30/29.97/25/24/23.98 1080PsF 24/23.98 1080i 60/59.94/50 720p 60/59.94/50HDMI: 1080p 60/59.94/50/30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50 NTSC SD: 525i 59.94 PAL SD: 625i 50
Computer Formats
Scaling
DVI Resolutions: 1080p 60/59.94/50/30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50 625i 50 525i 59.94 1024 x 768 800 x 600 640 x 480
Power
Power Supply
12 VDC
Operation Voltage
6 to 36 VDC
Power Consumption
5 W
Physical & Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 113°F / -20 to 45°C
Relative Humidity
0 to 90%, non-condensing
Dimensions
5.32 x 3.63 x 0.9" / 13.5 x 9.2 x 2.3 cm
Weight
8.7 oz / 247 g
Packaging Info
Package Weight
1.1 lb
Box Dimensions (LxWxH)
5.8 x 5.55 x 2.6"

Isi Dalam Box

Isi dalam box:

  • Blackmagic Design Mini Converter UpDownCross HD
  • 12 VDC Universal Power Supply

Delivery Info

  • Jatim : 1-3 Hari
  • Jateng & Yogyakarta : 1-4 Hari
  • Jabar : 1-4 hari
  • Jabodetabek : 2-4 Hari
  • Bali : 2-4 Hari
  • Nusa Tenggara : 2-6 hari
  • Sumatera ; 2-6 Hari
  • Kalimantan : 2-6 Hari
  • Sulawesi : 2-7 Hari
  • Maluku & Papua : 2-7 Hari
  • NB: Lama pengiriman akan bertambah 7-10 hari kerja, jika unit terdapat baterai
