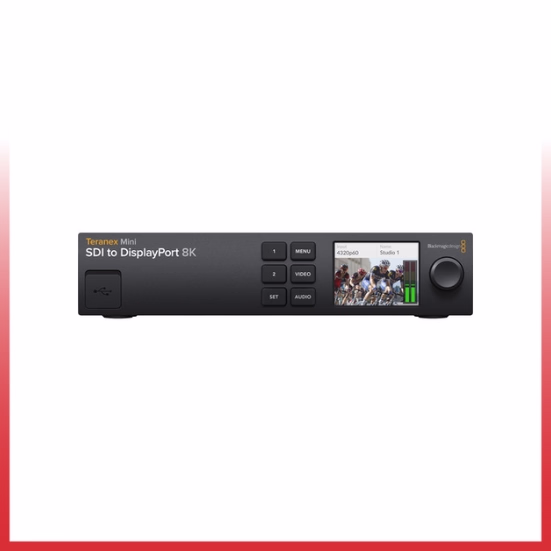

Blackmagic Design Teranex Mini SDI to DisplayPort 8K Converter
Blackmagic Design Teranex Mini SDI to DisplayPort 8K Converter - Image 2
Blackmagic Design Teranex Mini SDI to DisplayPort 8K Converter - Image 3

Blackmagic Design Teranex Mini SDI to DisplayPort 8K Converter

Rp33,650,000.00

  • Supports DCI 8K, 8K, DCI 4K, UHD, 2K, HD
  • Accepts Third-Party Calibration Probes
  • 12G-SDI I/O / DisplayPort/USB-C D.P. Out
  • 2 x Selectable, On-Screen Scopes
  • Auto-Convert 2SI and Square Division
  • Supports HDR Workflows
  • Supports 33-Point 3D LUTs
  • Front-Panel Interface, Audio Meters
  • Rack-Mountable with Separate Kit

Hubungi CS

Guaranteed safe checkout



Chat CS  081217178890 | 081216422333
SKU: Blackmagic Design Teranex Mini SDI to DisplayPort 8K Converter Categories: , Brand: Product ID: 128464

Description

Description

Blackmagic Design Teranex Mini SDI to DisplayPort 8K Converter

Blackmagic Design Teranex Mini SDI to DisplayPort 8K Converter

Spesifikasi

Spesifikasi:

Inputs/Outputs
Video Inputs
4x BNC (12G-SDI)
Audio Inputs
No
Video Outputs
4x BNC (12G-SDI) (Loop Output) 2x DisplayPort (DisplayPort 1.4) 1x USB-C (DisplayPort 1.4)
Audio Outputs
2x RCA Analog
Other I/O
1x RJ45 Control 1x USB-C
Format Support
Input Video Format
SDI (4:4:4/4:2:2 RGB, YUV) DCI 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 8K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 23.98/24/25/29.97/30 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps
Output Video Format
SDI (4:4:4/4:2:2 RGB, YUV) DCI 8K at 25/29.97/30/47.95/48/50/59.94/60 fps 8K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 23.98/24/25/29.97/30 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps
Output Audio Format
Analog: 48 kHz / 24-Bit
Embedded Audio
SDI: 16-Channel
Standards
Video Standard Compliance
SMPTE 259M/292M/296M/372M/424M-B/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10
Hardware
Display Size
2.2"
OS Compatibility
Windows 10 macOS 10.14 macOS 10.1 or Later
Power
Power I/O
1x IEC C14 Input
Power Consumption
Device: 100 to 240 VAC (35 W)
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
0 to 90%
General
Dimensions
8.27 x 6.93 x 1.73" / 21.01 x 17.6 x 4.39 cm
Weight
2.6 lb / 1.18 kg
Packaging Info
Package Weight
2.985 lb
Box Dimensions (LxWxH)
11.4 x 8.6 x 3.5"

Isi Dalam Box

Isi dalam box:

  • Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter
  • 4 x Rubber Foot

Delivery Info

  • Jatim : 1-3 Hari
  • Jateng & Yogyakarta : 1-4 Hari
  • Jabar : 1-4 hari
  • Jabodetabek : 2-4 Hari
  • Bali : 2-4 Hari
  • Nusa Tenggara : 2-6 hari
  • Sumatera ; 2-6 Hari
  • Kalimantan : 2-6 Hari
  • Sulawesi : 2-7 Hari
  • Maluku & Papua : 2-7 Hari
  • NB: Lama pengiriman akan bertambah 7-10 hari kerja, jika unit terdapat baterai
