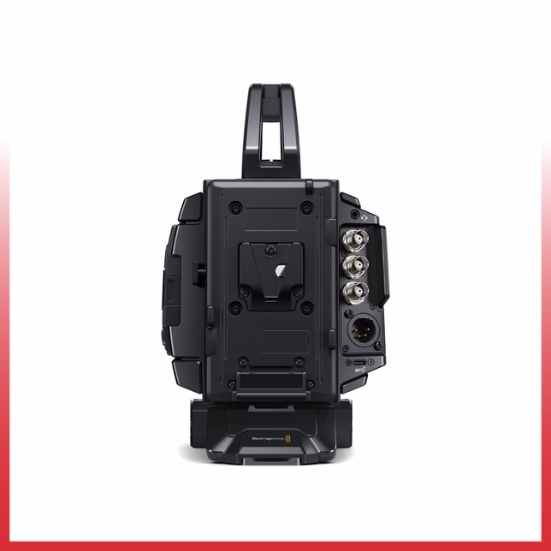

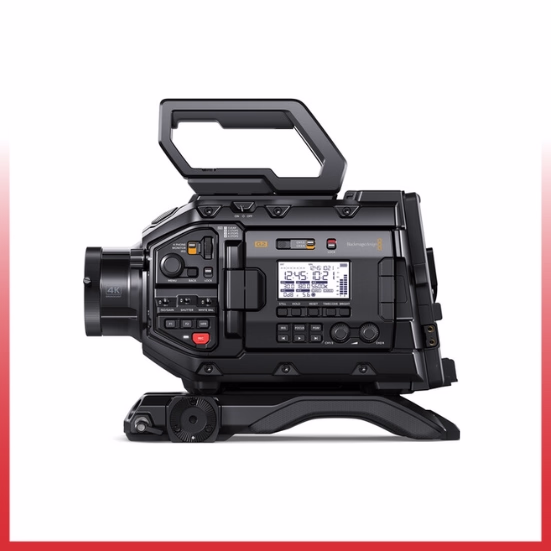

Blackmagic Design URSA Broadcast G2 Camcorder

B4

Yes

23.1 x 12.99 mm (2/3"-Type) CMOS

No

Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters

Stills & Video

Electronic Rolling Shutter

Native: 400 to 3200 (100 to 25,600 Extended) Gain: -6 to 18 dB

13 Stops

Automatic, Manual Focus

Blackmagic RAW 10-Bit 6144 x 3456 up to 50 fps [65 to 483 Mb/s] 3728 x 3104 up to 59.94 fps [36 to 265 Mb/s] 6144 x 2560 up to 59.94 fps [49 to 359 Mb/s] 3840 x 2160 up to 59.94 fps [32 to 190 Mb/s] 1920 x 1080 up to 150 fps [5.2 to 47 Mb/s]   H.264 1920 x 1080p up to 59.94 fps [1.8 to 7 Mb/s]   H.265 3840 x 2160 up to 59.94 fps [3.2 to 7.8 Mb/s]   ProRes 422 HQ/ProRes 422 3840 x 2160 up to 59.94 fps [73.6 to 110 Mb/s] 1920 x 1080p up to 59.94 fps [18.4 to 27.5 Mb/s] 1920 x 1080p up to 120 fps [18.4 to 27.5 Mb/s]

Yes

Stereo

ProRes: 2-Channel, 24-Bit at 48 kHz

Dual Slot: SD/SDHC/SDXC (UHS-II) Dual Slot: CFast (CFast 2.0)

No

1x BNC (12G-SDI) Output 1x BNC (12G-SDI) Input 1x BNC (12G-SDI) Output

2x XLR 3-Pin Mic/Line Input on Camera Body (+48 V Phantom Power) 1x 1/8" / 3.5 mm TRRS Headphone/Mic Headphone Input/Output on Camera Body

1x XLR 4-Pin Input 1x XLR 4-Pin (12 to 20VDC) Output 1x Molex 12-Pin Input

1x USB-C (USB 3.2 / 3.1 Gen 2) (Shared with Video Output) 1x USB-C Data Input 1x 2.5 mm Sub-Mini (LANC) Control Output 1x BNC (Reference, Sync, Timecode) Data Input 1x Hirose 12-Pin (Camera Interface) Control Output

Bluetooth

Yes: iPadOS Only App Name: Blackmagic Camera Control App

No

Primary Monitor: Articulating 4" Touchscreen LCD Status Display: Fixed Non-Touchscreen LCD

Optional, Not Included

V-Mount

100 W

32 to 104°F / 0 to 40°C up to90% Humidity

-4 to 113°F / -20 to 45°C

3x 1/4"-20 Female (Bottom)

1x ARRI/Hirth Rosette

Yes

Magnesium Alloy

10.95 x 9.93 x 5.9" / 27.81 x 25.22 x 15 cm

7.83 lb / 3.55 kg (Body Only)

11.4 lb

21 x 10.1 x 7.1"
