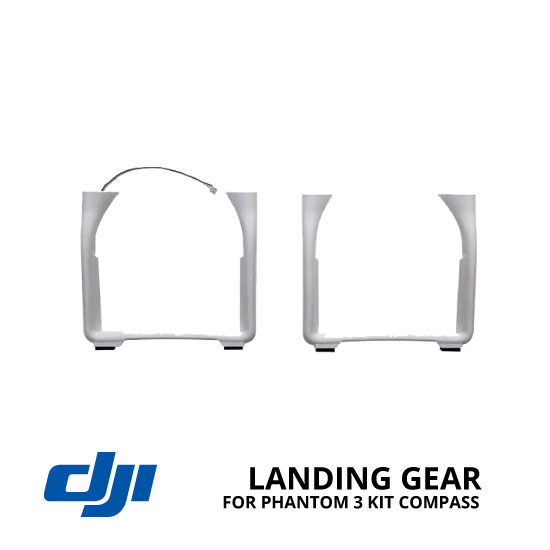

DJI Phantom 3 Landing Gear Kit Compass

Description

DJI Phantom 3 Landing Gear Kit Compass

Satu set Landing Gear dengan kompas. Landing gear dirancang untuk melindungi kamera phantom Anda dan shell saat mendarat. Bisa juga menstabilkan phantom saat pesawat tidak digunakan.

Terdapat sebuah kompas dalam satu set landing gear. Jika kompas yang lama perlu diganti, Anda harus membuka phantom 3 profesional / Advanced Anda selama proses instalasi. Jika kompas yang lama tidak perlu diganti, silahkan tempatkan kompas bawaannya phantom di dalam landing gear baru selama proses instalasi.

Mount the Landing Gear with the Compass Module if Required

If the GPS ATTI. Mode is used, please mount the landing gear with the Compass Module first.

1. Prepare the aircraft and the landing gear.
2. Mount the landing gear with the Compass Module to the right part (shown as the following chart); make sure the 5-pin cable is through the hole of the landing gear. Fix the landing gear with screws (M3x6), and then connect the 5-pin cable to the Compass Module.
3. Mount the other landing gear to the left part.
4. Fix the antenna and the 5-pin cable on both landing gear by using the white adhesive tape

• When flying, please make sure the compass module is stationary and firm.
• If the Landing Gear with the compass module mount on has been deformed, please replace it with a new one and mount it as the procedures above.
