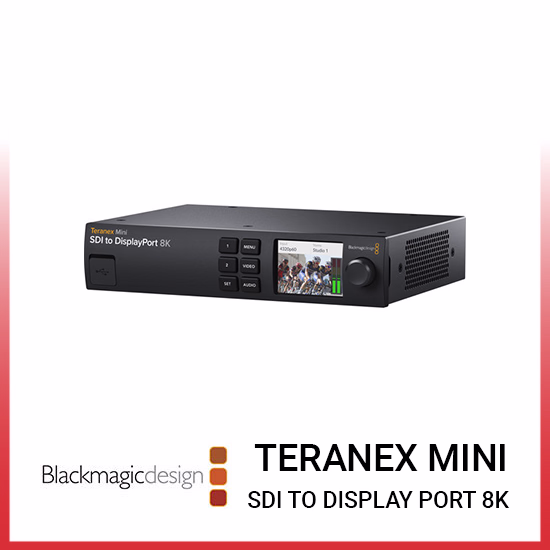

Blackmagic Design Teranex Mini SDI to DisplayPort 8K Converter

Rp 33.650.000

  • Supports DCI 8K, 8K, DCI 4K, UHD, 2K, HD
  • Accepts Third-Party Calibration Probes
  • 12G-SDI I/O / DisplayPort/USB-C D.P. Out
  • 2 x Selectable, On-Screen Scopes
  • Auto-Convert 2SI and Square Division
  • Supports HDR Workflows
  • Supports 33-Point 3D LUTs

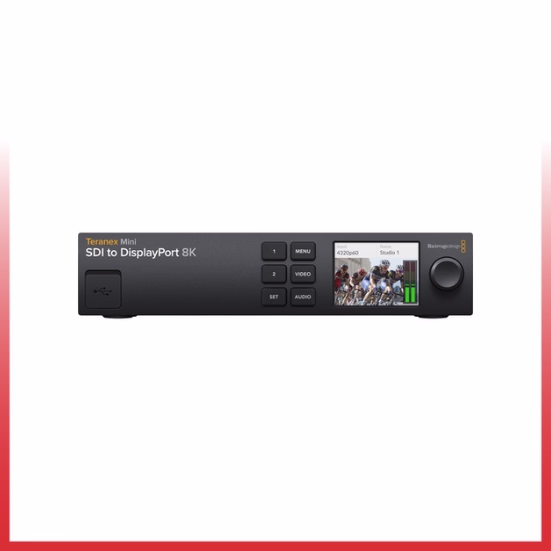

  • Front-Panel Interface, Audio Meters
  • Rack-Mountable with Separate Kit

Hubungi CS

Out of stock

Silahkan Klik jika ingin membeli via marketplace

Subsidi Ongkir untuk pembelian Minimal 500rb

  • Jaminan asuransi untuk kehilangan
  • Pengiriman 2×24 Jam
  • Order sebelum 14:00 WIB (Senin-Sabtu)
    untuk pengiriman hari yang sama.
Guaranteed Safe Checkout

Blackmagic Design Teranex Mini SDI to DisplayPort 8K Converter

Blackmagic Design Teranex Mini SDI to DisplayPort 8K Converter

Additional information

Weight 1.5 kg

Reviews

There are no reviews yet

Add a review
You must be logged in to post a review Log In

Spesifikasi:

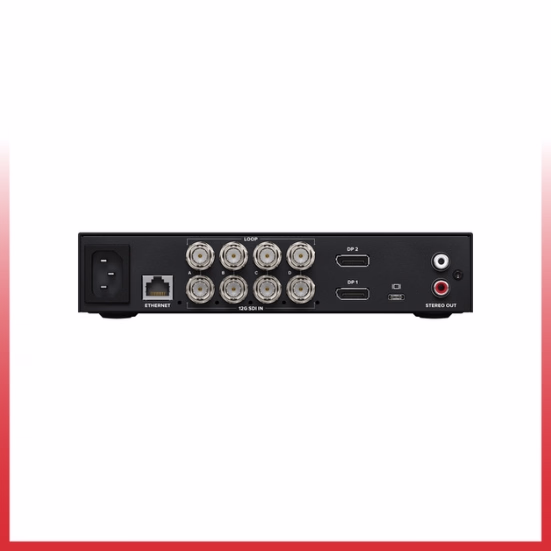

Inputs/Outputs
























Video Inputs
4x BNC (12G-SDI)
Audio Inputs
No
Video Outputs
4x BNC (12G-SDI) (Loop Output)
2x DisplayPort (DisplayPort 1.4)
1x USB-C (DisplayPort 1.4)
Audio Outputs
2x RCA Analog
Other I/O
1x RJ45 Control
1x USB-C



Format Support




















Input Video Format
SDI (4:4:4/4:2:2 RGB, YUV)
DCI 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
8K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 23.98/24/25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Output Video Format
SDI (4:4:4/4:2:2 RGB, YUV)
DCI 8K at 25/29.97/30/47.95/48/50/59.94/60 fps
8K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 23.98/24/25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 23.98/24/25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Output Audio Format
Analog: 48 kHz / 24-Bit
Embedded Audio
SDI: 16-Channel



Standards








Video Standard Compliance
SMPTE 259M/292M/296M/372M/424M-B/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10



Hardware












Display Size
2.2"
OS Compatibility
Windows 10
macOS 10.14
macOS 10.1 or Later



Power












Power I/O
1x IEC C14 Input
Power Consumption
Device: 100 to 240 VAC (35 W)



Environmental
















Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
0 to 90%



General












Dimensions
8.27 x 6.93 x 1.73" / 21.01 x 17.6 x 4.39 cm
Weight
2.6 lb / 1.18 kg



Packaging Info












Package Weight
2.985 lb
Box Dimensions (LxWxH)
11.4 x 8.6 x 3.5"

Isi dalam box:



  • Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter

  • 4 x Rubber Foot
