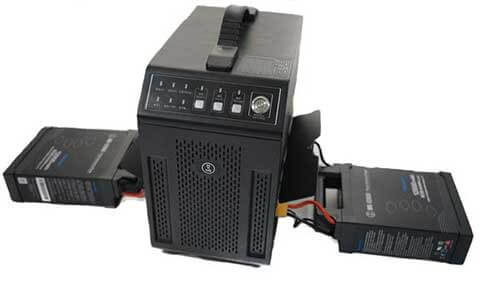

DJI Agras MG-1S Intelligent Battery Charger
DJI Agras MG-1S Intelligent Battery Charger adalah charger baterai lithium khusus yang disesuaikan untuk dua kelompok dari 12 sel yang dihubungkan secara seri dengan daya output maksimum 2400 W, memiliki fitur charge dan discharge satu grup baterai atau dua grup secara bersamaan. Ada tiga mode kerja yaitu Quick Charge, Slow Charge, dan Storage.
Battery Charger memiliki banyak fungsi perlindungan seperti perlindungan arus berlebih, perlindungan overcharge, perlindungan suhu berlebih, perlindungan kabel rusak, indikasi status, dan alarm battery life. Battery Charger ini bisa digunakan untuk mengisi baterai DJI Agras MG-1 atau MG-1S (MG-12000S Battery).

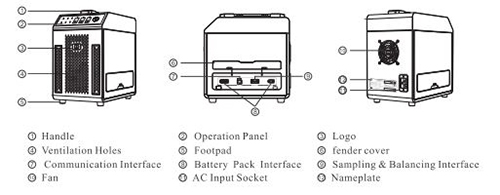

Appearance Description

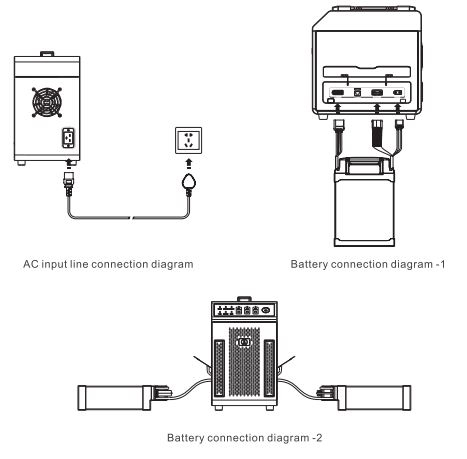

Wiring Instruction
- Sebelum menghubungkan baterai, silakan periksa apakah ada kerusakan pada terminal dan kabel
- Buka penutup fender di sisi kanan dan kiri dan periksa apakah ada penyumbatan di setiap terminal
- Pasang baterai, lalu masukkan semua terminal baterai ke interface daya dan lakukan sampling & balancing interface
- Masukkan kabel input AC khusus dan dapatkan akses ke grid power
Fitur DJI Agras MG-1S Intelligent Battery Charger
- Charger untuk baterai MG-12000S
- Total ouput power 2400 W
- 3 mode kerja : Quick Charge, Slow Charge, dan Storage.
- Berat 9.5 Kg
- Forced-Air Cooling
Spesifikasi DJI Agras MG-1S Intelligent Battery Charger
| Input Characteristics | |
| Rated input voltage | 100-125 Vac; 153-240 Vac |
| Rated input frequency | 50~60 Hz |
| Max input current | 15 A Max |
| Power Factor (PF) | ≥ 0.99 (Rated load) |
| Output Characteristics | |
| Battery pack charge interface quantity | 2 |
| Charging pattern | CC/CV |
| Rated output voltage | 50.4 V |
| Rated output current | 24 A; 48 A (24 A/each) |
| Slow charge mode current | 12 A (Type) |
| Storage mode current | 2.5 A (Type) |
| Total output power | 2400 W |
| Charge efficiency | ≥ 90% @153~240 Vac |
| ≥ 85% @100~152 Vac |
| Sampling and Balancing | |
| Single cell acquisition accuracy | ±10 mV |
| Temperature acquisition accuracy | ±3°C |
| Single cell balancing current | 500 mA (Max) |
| Environment | |
| Working ambient temperature range | 0~45°C (Do not charge the battery below 0°C) |
| Storage conditions | Temperature range: -20~55°C |
| Humidity range: 10% RH ~ 90% RH no condense | |
| Operating temperature range | 10% RH ~ 90% RH no condensing |
| Altitude | 0~3000 m |
| Type of cooling | Forced-Air Cooling |
| Other Parameters | |
| Dimensions | 180x325x300 mm |
| Weight | 9.5 Kg |
| Certificates & Standards | CB/CE/PSE/KC/FCC |
| EMC:EN55022-CLASSA |
